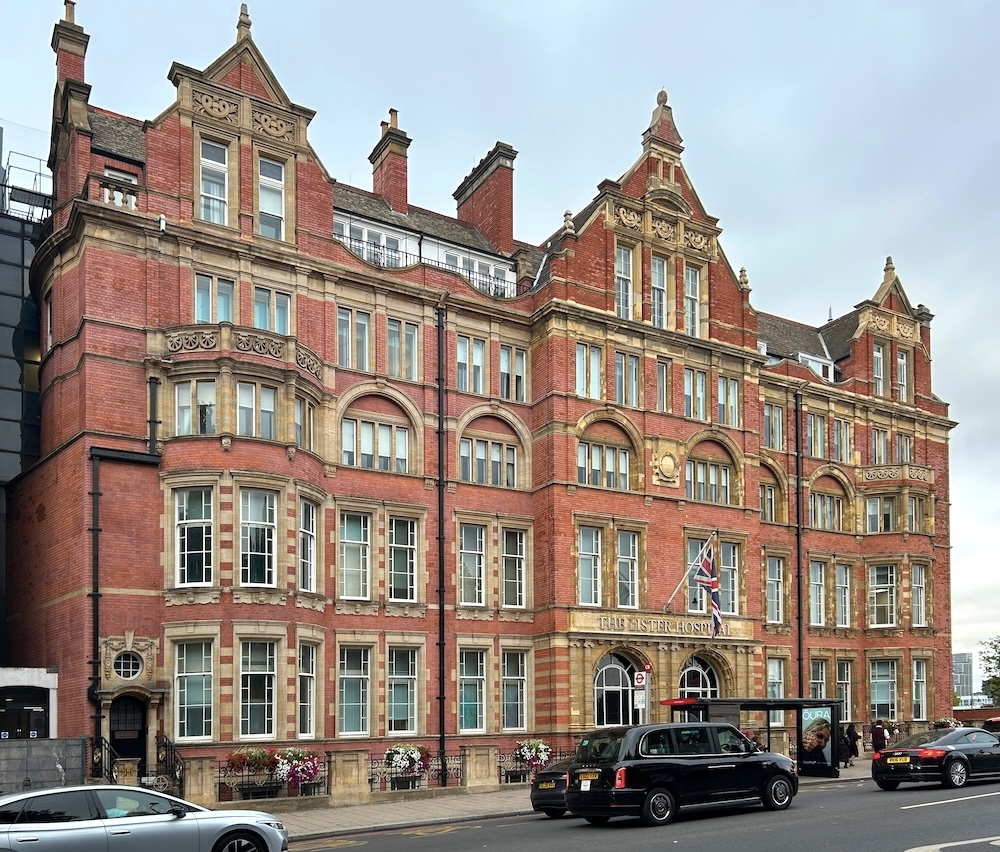

The Lister Hospital (previously the Lister Institue of Preventive Medicine), Chelsea Bridge Road, by the architects Alfred and Paul Waterhouse.
One of Alfred Waterhouse's later works, the Lister Institute on Chelsea Bridge Road, London SWI, was built from 1894-98 and is Grade II listed by Historic England. It was formally opened as the British Institute of Preventive Medicine in May 1897 (Godlee 458). Lord Lister, who had retired from his Professorship at King's College Hospital in 1891, was one of the founders: he became the first Chairman of the Governing Body, and later the President of the Institute. In 1909-10, a few years after Alfred Waterhouse's death in 1905, his son Paul was responsible for a later addition to the north in the same style: Lister himself "lived just long enough to see the building in its present form, for it was completed in 1910" (Godlee 499; Lister died in 1912).
As it stands now, this is an imposing, red-brick unmistakably late-Victorian institutional building, with terracotta decoration above the bays, below the gables etc., as well as the usual contrasting stone dressings. The stone-carving was by Farmer and Brindley, and the faience was by Burmantofts (see Cunningham and Waterhouse 268). It was one of several such buildings for which Waterhouse was responsible at that period: the more complex University College Hospital, London, was being built at the same time. The Institute has a basement, four main storeys, an attic storey mostly set back below a pitched roof, and tall chimney-stacks. A pleasant effect is achieved by the bay windows of the first three storeys at each end of the front elevation, while the entrance bay stands out a little, with its tall, three-windowed gable. This would become a central featuee once the extension was added.

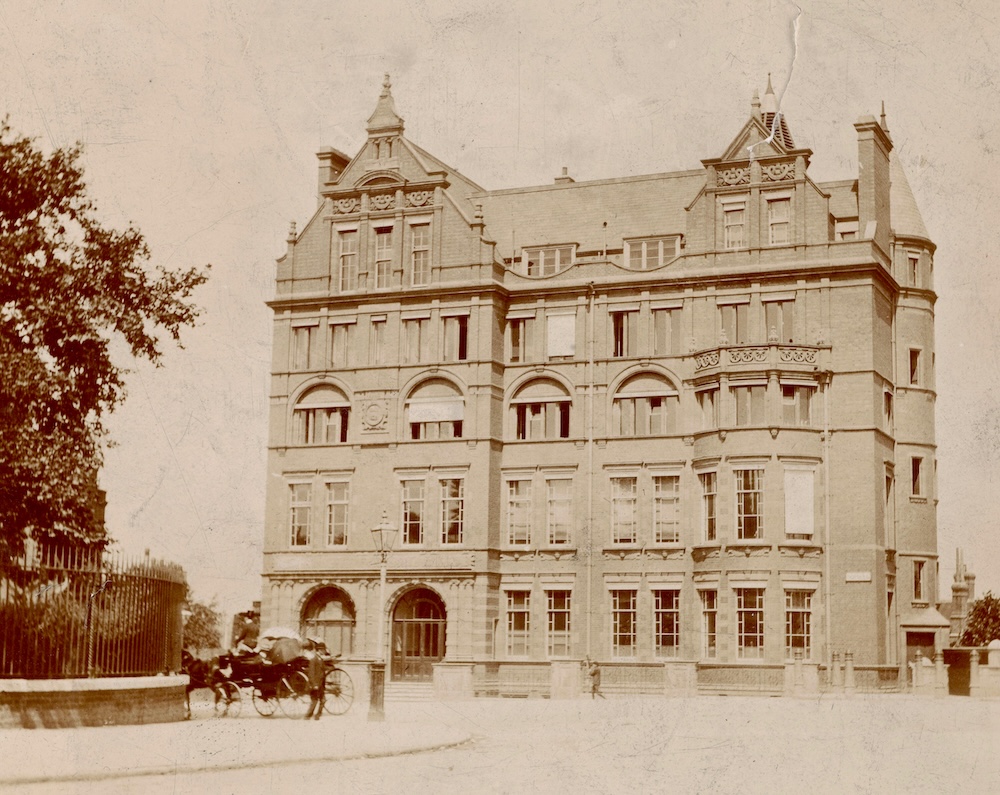

The Institute as first built. Source: the Wellcome Collection, image slightly cropped. [Click on all the images on this page to enlarge them.]
Paul Waterhouse's "matching extension" (Cunningham and Waterhouse 238) completes the range perfectly, so much so that the old photograph of the original building looks incomplete. To those who enjoy late Victorian architecture, the end result is a very handsome composition. Its decorative gables and other decorative elements associate it with the "Free Flemish manner" popular at that time.
Plans in the Wellcome Collection dated c. 1894-95 show the layout of the interior. Most of the space was allotted to research laboratories "for the study of bacteriology, bio-chemistry, proto-zoology, experimental pathology, entomology, and statistics" (Godlee 500). Rooms in the basement are labelled "gas analysis laboratory," "destructor house," "sterilization plant," "culture media laboratory" etc. Here too is the outline of large circular lecture theatre. At one end of the second floor, facilities for animals are marked out — for their food preparation, washing, and "operating." Experimentation on them was clearly envisaged here: a very early example of their contribution is shown in Plate 2 of Leslie Collier's book, which shows "Tom," the pony "immunized to make the first anti-diphtheria antitoxin used in the UK" (following p. 34, and dated September 1894).

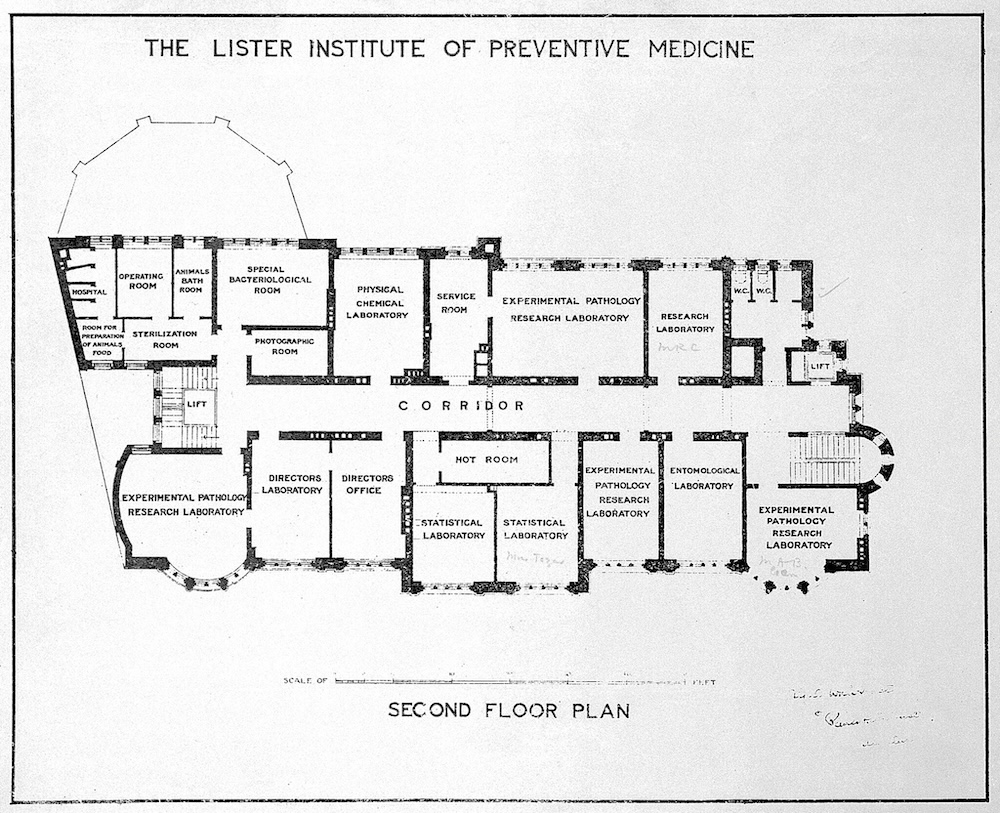

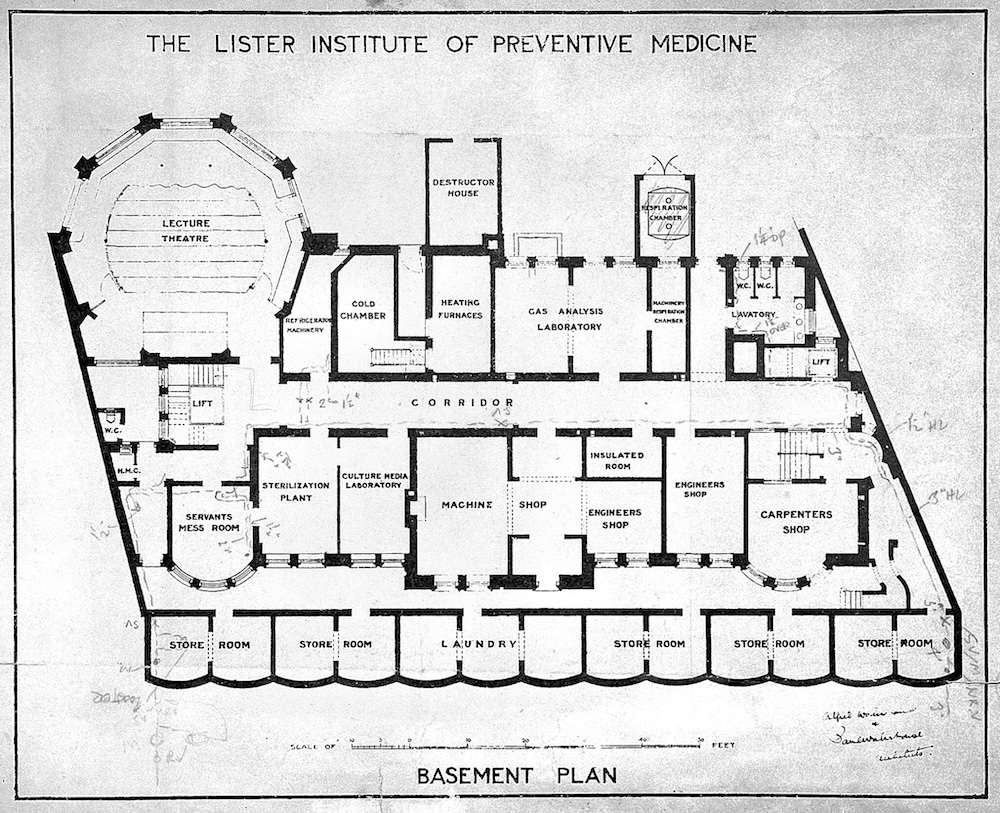

Left: The basement plan, showing the large lecture theatre on the left. Right: The second floor plan, with facilities for animals on the left (a "protozoology aquarium etc." was to be situated on the third floor). Both c. 1894-5. Source: the Wellcome Collection.
The fourth floor was to be mainly devoted to living accommodation, because the Director was expected to reside there (see Godlee 500), but it was also to house the Institute's large library.

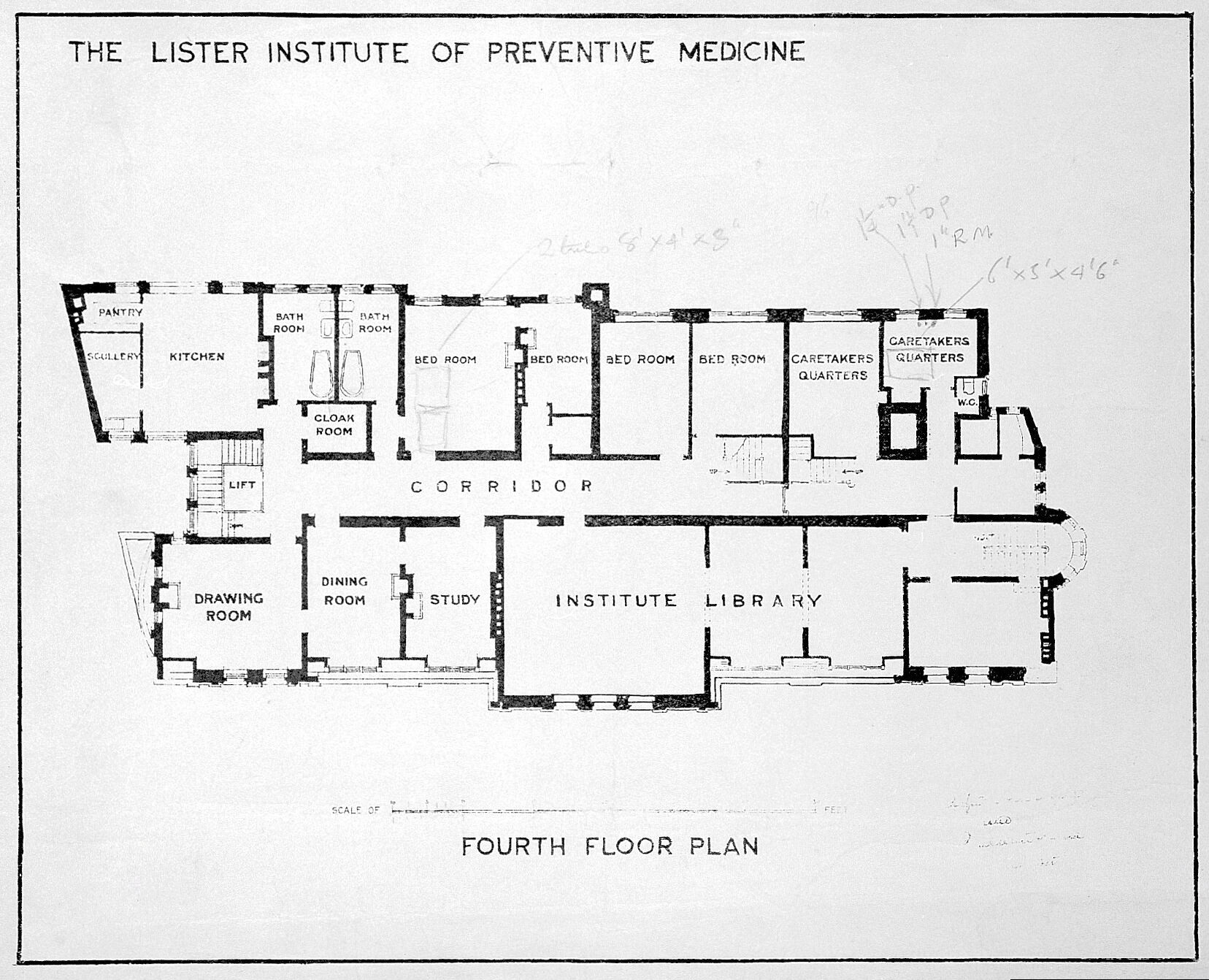

Residential area and library at the higher level.
It is hard to imagine now how innovative all this was at the time: indeed, there were "opponents of pathological enquiry," as mentioned in a letter by the then Surgeon-General, William Robert Cornish (1828-1897), to the British Medical Journal on 23 May 1891. Anxieties about vivisection were a particular problem, because this was now very much an issue with the wider public: in April 1894 there were "Anti-Vivisectionists Delegations to the Home Secretary and the President of the Board of Trade, and Public Protest Meeting held in Pimlico" ("Biographical Note"). Such protests inevitably led to "official timidity" (Chick et al., 13). Finance and suitable accommodation were two other major, linked problems. Nevertheless, after various manoeuvres the project was steered to fruition. It was set up as an independent organisation, first called "The British Institute of Preventive Medicine," then in 1898, after being helped by the Jenner Memorial fund, "The Jenner Institute of Preventive Medicine," and finally from 1903, in honor of its moving spirit, "The Lister Institute of Preventive Medicine" (see "Our History," and O'Connor 450).
The Institute, the first medical research charity in the country, was founded with the noble ideals of furthering research into preventing and curing the diseases that were the chief scourges of the time, such as diphtheria, typhoid and tuberculosis, and doing so with voluntary support — free of the kind of restraints imposed by government funding. It expanded and made its mark, especially as a centre for postgraduate training in the field of preventive medicine (see O'Connor 451), and was very highly thought of: "Until 1914 The Lister Institute was the only organisation of its kind in the country and was ranked internationally with the Pasteur Institute in Paris and the Rockefeller Institute in New York" ("Our History"). The Wellcome Collection, which has a useful timeline for the Institution in its "Biographical Note," explains, "The Lister Institute no longer exists in its old form conducting research and producing vaccines and sera, but now administers fellowships for research in the biomedical sciences." However, the building itself, with its interesting history, still serves the health sector: since 1975 it has been in full use as a private hospital, listed as "outstanding" by the Quality Care Commission.
